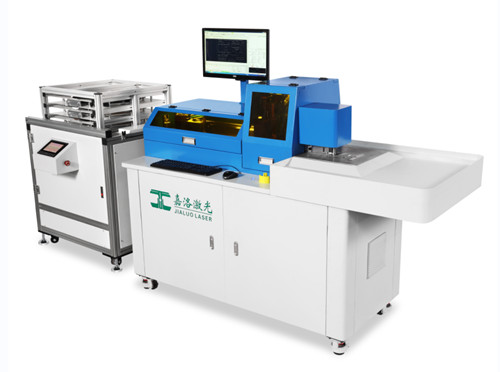

產品名稱：ABD-8N-F多功能電腦自動彎刀機
所屬類別：電腦自動彎刀機
產品品牌：嘉洛激光
產品型號：ABD-8N-F
瀏覽次數：956 次
適用范圍：
l 多功能電腦自動彎刀機
MULTI-FUNCTION COMPUTERIZE AUTO BENDING MACHIN
型號：ABD-8N-F MODEL: ABD-8N-F
技術數據 tech dat
1 | 機器尺寸 Machinery size | 2000*830*1200 2000*830*1200 |
2 | 機器重量 Machinery weight | 400KG |
3 | 電源 Supply power | 單相220V±5% 50HZ-60HZ 10A Single phase220V±5% 50HZ-60HZ 10A |
4 | 功率 Power | 1.5KW |
5 | 支持文件格式 Support file format | DXF, AI |
6 | 環境溫度 Temperature | 5度-35度 5°-35° |
7 | 氣源 Air pressure | ≥6公斤/平方厘米，直徑8毫米氣管 ≥6kg/cm2, ￠8mm air pipe |
8 | 適合刀材高度（注） Rule highness (note) | 23.8毫米 (標準)，其他規格刀材（8-30毫米）可選配模具。 23.80mm (standard), the other rule can be made as request (8-30mm) |
9 | 適合刀材厚度（注） Rule thickness (note) | 0.71毫米（標準），其他規格可選（0.45-1.07）可選配模具。 0.71mm (standard), the other rule can be made as request (0.45-1.07mm) |
10 | 彎刀外模外徑 Bending mould outside diameter | 28毫米（標準），其他規格可選 ￠28mm (standard), the other size can be made as request |
11 | 最大彎曲角度 Max bending angle | 90° |
12 | 最小彎曲圓弧半徑 Min bending arc diameter | 0.5mm |
13 | 最大彎曲圓弧半徑 Max bending arc diameter | 800mm |
14 | 加工特性 Cutting shape | 扭斷、橋位、鷹嘴、平切、磨邊、齒刀和連點（快速換模裝置，可根據刀材規格選配模具） twist off, lip, notching,cut,broaching,perforating and nicking(All moulds can be quickly replaced, the moulds can be selected by rule) |
15 | 橋位規格 Notching size | 寬5.5毫米，高度15.6-18.6可調（標準），其他規格可訂。 width: 5.50mm, high: 15.6-18.6(standard), the other size can be made as request |
16 | 盤刀架 Coil-trolley | 自動升降盤刀架 Common trolley(The automatic Coil-trolley can be selected by your request) |
注：特殊規格可訂制。 The mark note is that the other size can be made as request. | ||
注：以上是標配，其他尺寸可根據客戶的不同需求訂制
Note: the above size is standard, the other can be customized accroding to customer’s needs.
